M7300FDW Mono laser multifunction printer

  • Printing speed:33ppm
  • Connection method:USB+NET+WIFI
  • Basic function:Print、Copy、Scan、Fax
  • Special function:
  • -3.5 inch touch screen
  • -Automatic duplex printing
  • -USB disk driect printing
  • -metal frame inside
  • -One pass two side scanning
  • -Scan to USB disk
  • -Confidential printing
  • Other Model:
    Select a model
M7300FDW
High-speed and Duplex Printing Your Powerful Assistant in Office

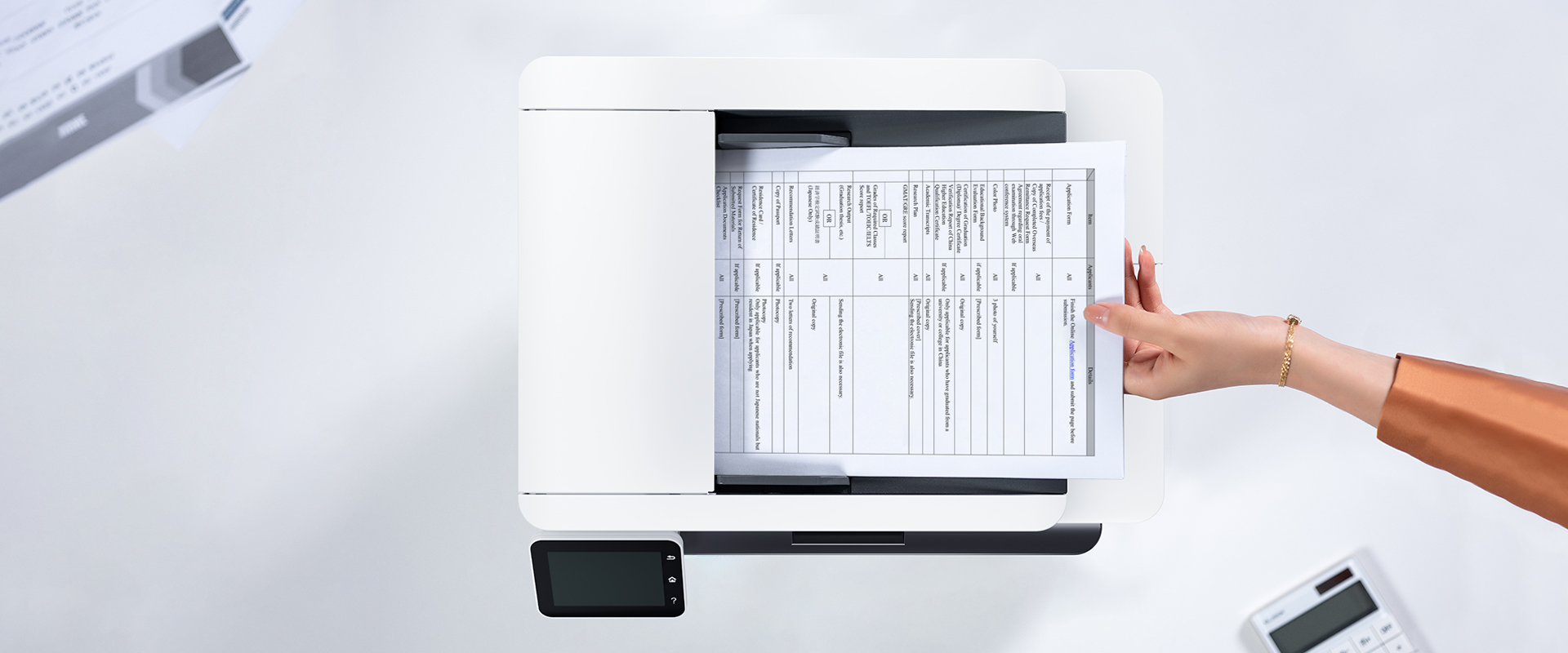

Continuous Copying and Scanning to Improve Efficiency
It has the standard 50-page automatic document feeder (ADF), which can copy and scan multiple manuscripts at once, reducing manual operation and waiting time

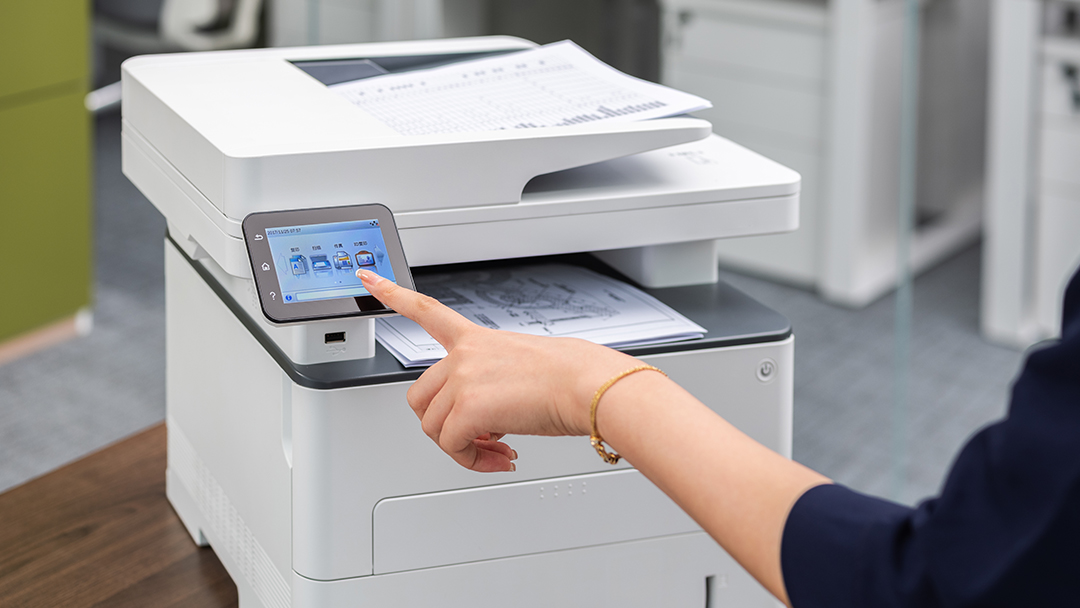

3.5 Inch Touch Screen, Easy to Use
Bigger screen to display information more clearly, making operation easier and printing process more efficient

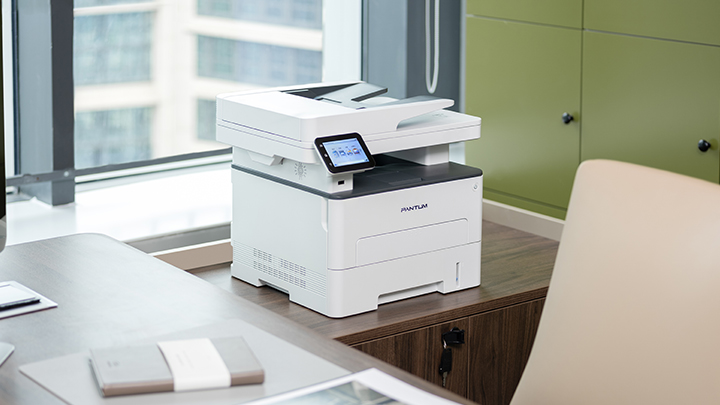

Mute Printing, Comfortable Office
Effectively reduce printing noise to provide you with a quiet and comfortable office environment

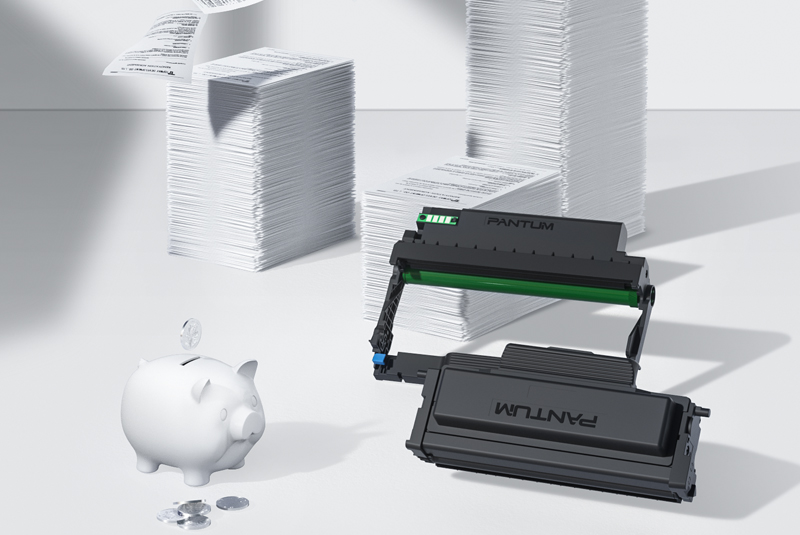

Separate Drum Unit and Toner Cartridge, be Cost-effective
Already configured 12,000-page drum unit and 1500-page toner cartridge, together with optional large capacity 1,500-page, 3,000-page and 6,000-page toner cartridge, can decrease the cost per page

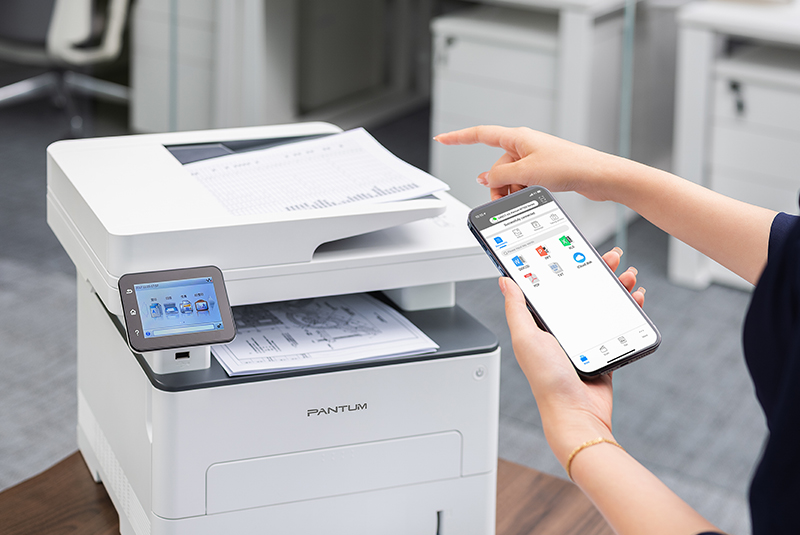

Mobile and Ethernet Printing, Convenient Experience
Through Ethernet network and wireless network, Wi-Fi direct connection, NFC touch connection and other methods, multi-device printing of mobile phones, tablets, and computers can be easily realized, and free office work style in the new era can be enjoyed

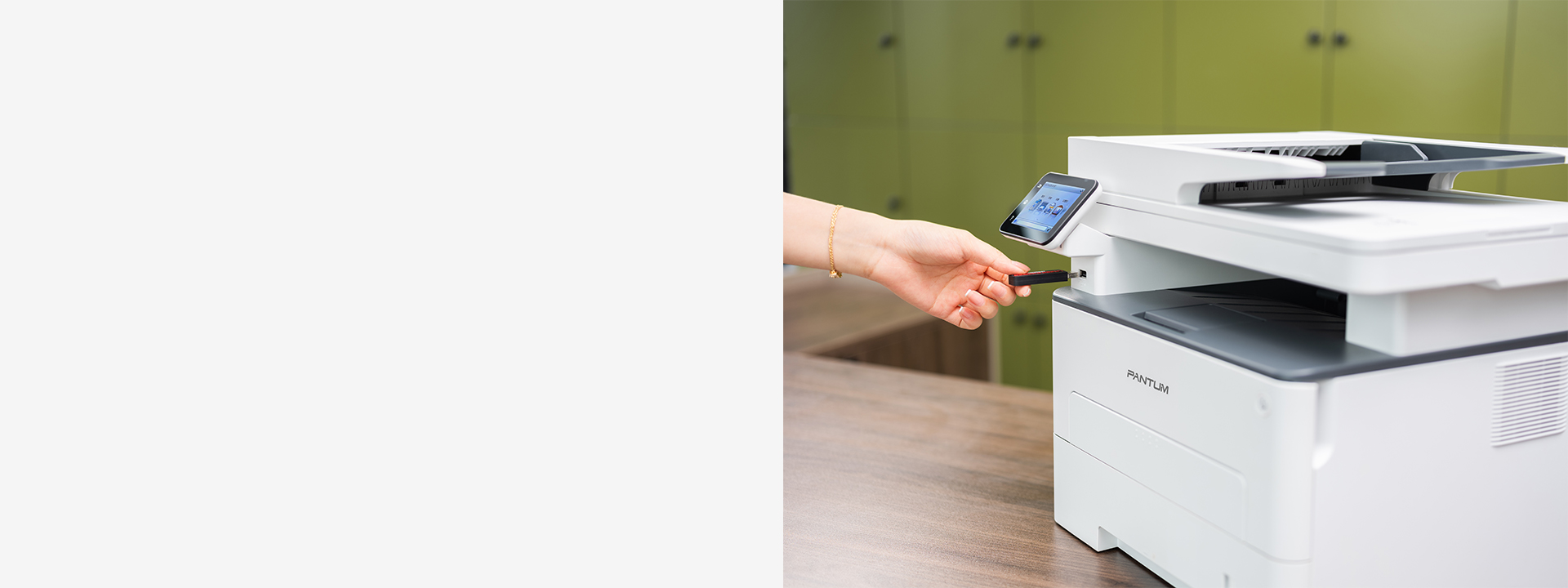

Scan with U-disk, Convenient and Speedy
Scan files to U-disk directly, take your U-disk away quickly, always be time-saving
Product Spec
Model
Model: M7300FDW
Print
Print Speed (Letter, Black) 33ppm(A4) 35ppm(Letter)
First print out time ≤8.5s
Maximum Monthly Duty Cycle 60000 pages
Recommended Monthly Page Volume 750 to 3500 pages
Print Resolution (maximum dpi) Max 1200x1200 dpi
Print Languages PCL5e、PCL6、PS、PDF
Processor speed 600MHz
Memory, standard 512MB
Duplex printing Auto
Operation panel 3.5 inch touch screen
USB print Yes
Confidential print Yes
NFC Yes
Copy
Copy Speed (Letter, Black) 33cpm(A4) 35cpm(Letter)
First copy out time flatbed:less than 10s ;ADF:less than 11s
Copy Resolution (max.dpi) Max 600×600 dpi
Maximum copy pages 99 pages
Copy reduce / enlarge settings 25%~400%
Copy Special Features ID copy, Receipt copy, N-up copy,Clone copy、poster copy、Manual Duplex Copy、collated copy
Scan
Scanner type Flatbed & ADF
Duplex scan Yes,up to 24ppm(48ipm)
Scan to USB Yes
ADF capacity 50pages
Scan Speed (maximum) 24 ppm(A4) 25 ppm(Letter)
Scan size (maximum) Flatbed:216×297mm ;ADF:216 x 356 mm
Scan resolution Flatbed:Max 1200×1200dpi ;ADF:Max 600×600dpi
Color scaning Yes
Scan Destinations Scan to PC、E-mail、FTP、ios/Android、thumb drive
Fax
Fax type Mono
Modem Speed 33.6Kbps
Fax resolution Max 300 x 300 dpi
Fax Memory Up to 650 pages
Coded system MH / MR / MMR / JBIG
Compatibility ITU-T SG3 / ECM
Fax Special Features PC-FAX(only sending)、Junk fax barrier、Multi-send、 Fax Forwarding、 Quick-Dial、 group dial、Delayed Send 、 Auto Redial、 Auto Receive、Auto Reduction、Mobile fax
Paper handling
Paper Input Capacity 250 pages
Multipurpose tray 1 page
Paper output capacity 150pages
Media types Plain, Thick, Thin, Transparency, Cardstock, Label
Media sizes A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive, Folio, Oficio, Statement, Japanese Postcard, ZL, Big 16K, Big 32K, 16K, 32K, B6,Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Media weights Standard tray:60-105g/㎡ ;Multipurpose tray:60-200g/㎡
General
Dimensions(W×D×H) 415mm*360mm*352mm
Weight(without cartridge&package ) 10.54kg
Weight(with cartridge&package) 13.71kg
Operating Environment Recommended temperature:10~32℃;Humidity range:20% ~ 80%
Power 110V:AC100-127V(±10%),50/60Hz(±2Hz),9A ;220V:AC220-240V(-15%,+10%),50/60Hz(±2Hz),4.5A
Noise Level printing: average 550W ;ready: less than50W ;sleep:less than2 W
Operating system compatibility Microsoft Windows Server2003 / Server2008 / Server2012 /XP/Vista/Win7/Win8/Win8.1/Win10/Win11(32/64 Bit) ;Mac OS 10.7-12 ;Linux:Ubuntu 12.04/14.04/16.04/18.04/20.04(32/64 Bit)
Power consumption printing:52dB(A) ;copy:54dB(A) ;scan:52dB(A) ;standby:30dB(A)
Standard Ports HI-Speed USB 2.0 ; Net:IEEE 802.3 10/100Base-Tx ;WiFi:IEEE 802.11b/g/n;
Consumable
Consumable Type Toner Cartridge & Drum Unit
Starter cartridge(1) 1500 pages
Starter drum(1) 12000 pages

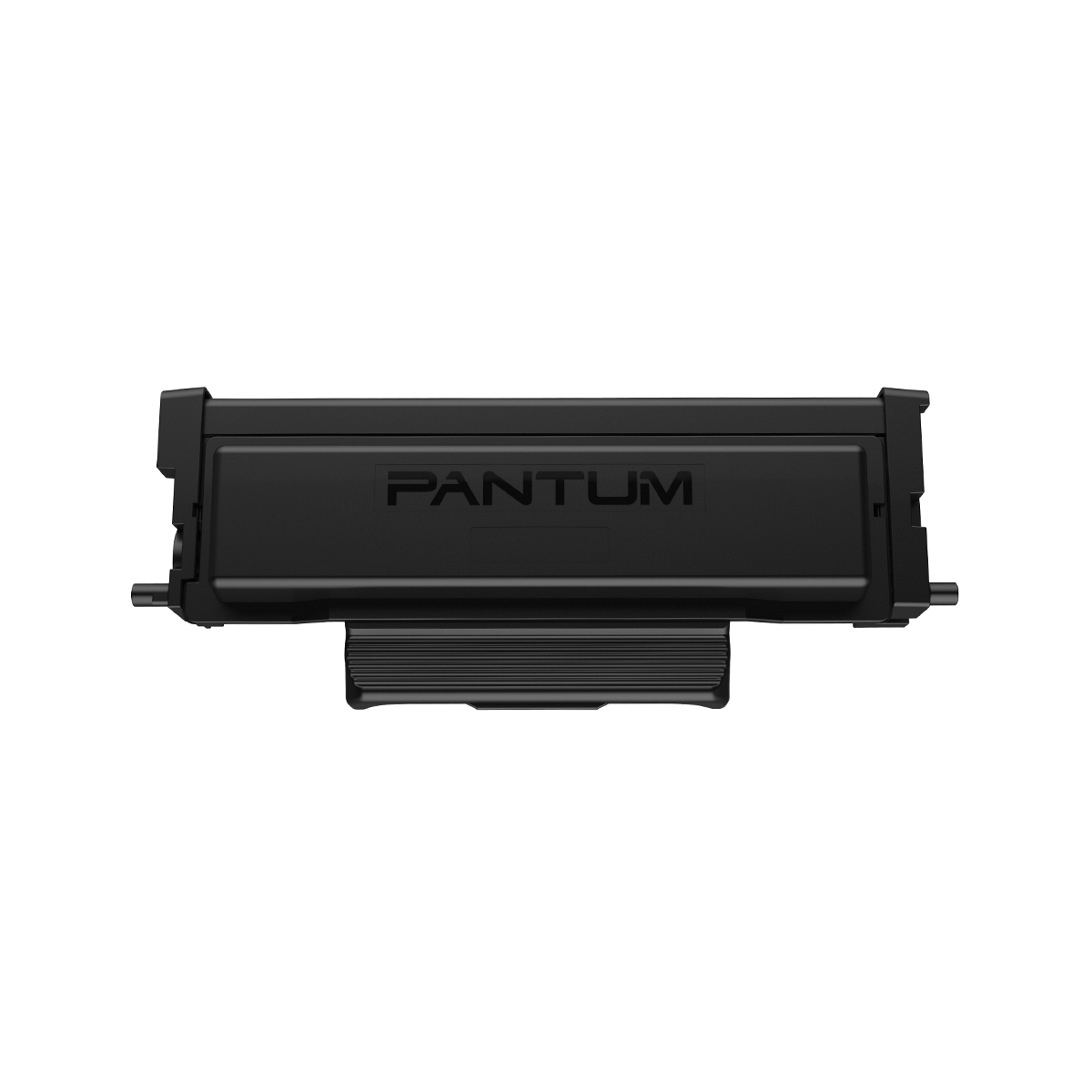

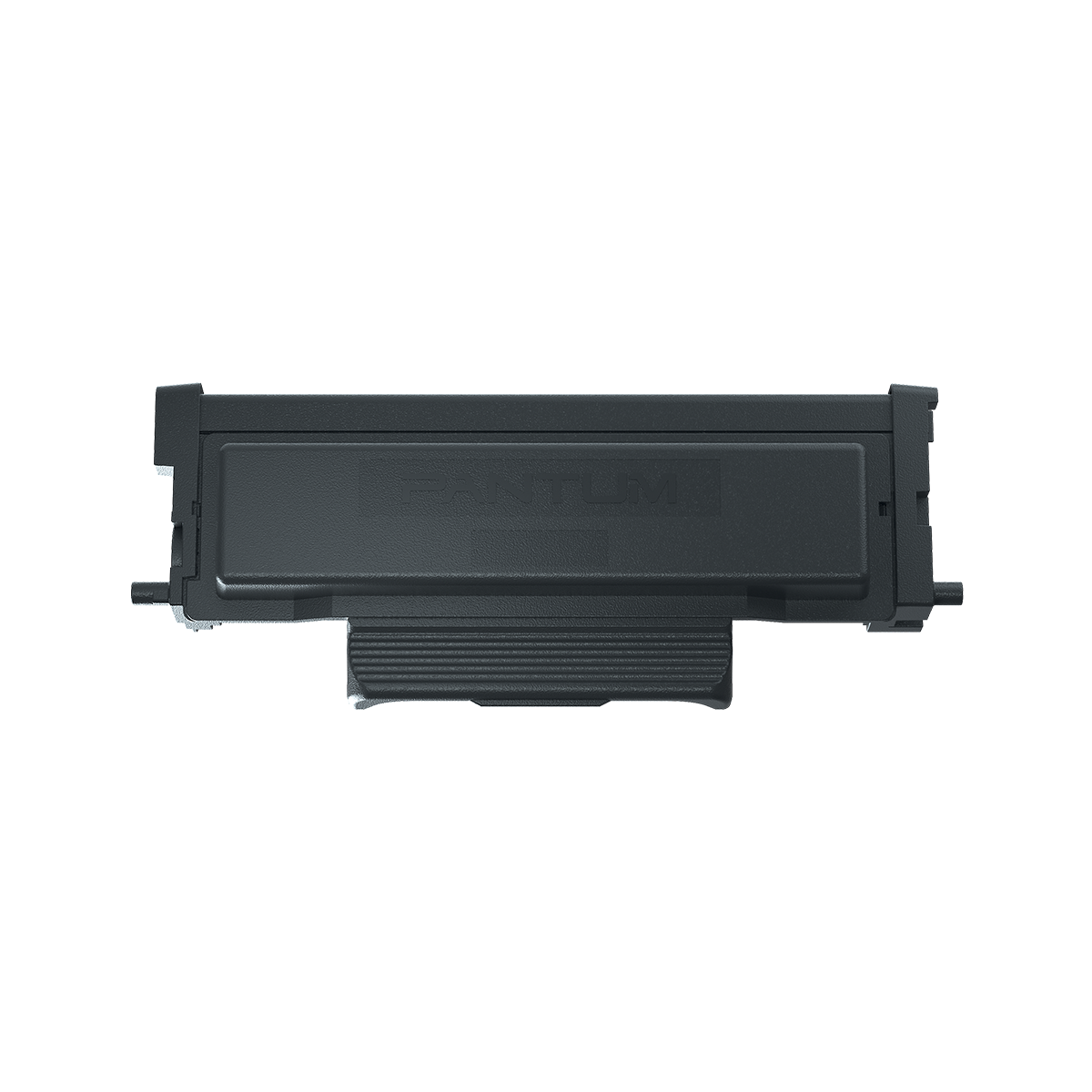

Cartridge model and yiled(1) TL-410 (1,500 pages) ;TL-410H (3,000 pages) ;TL-410X (6,000 pages)

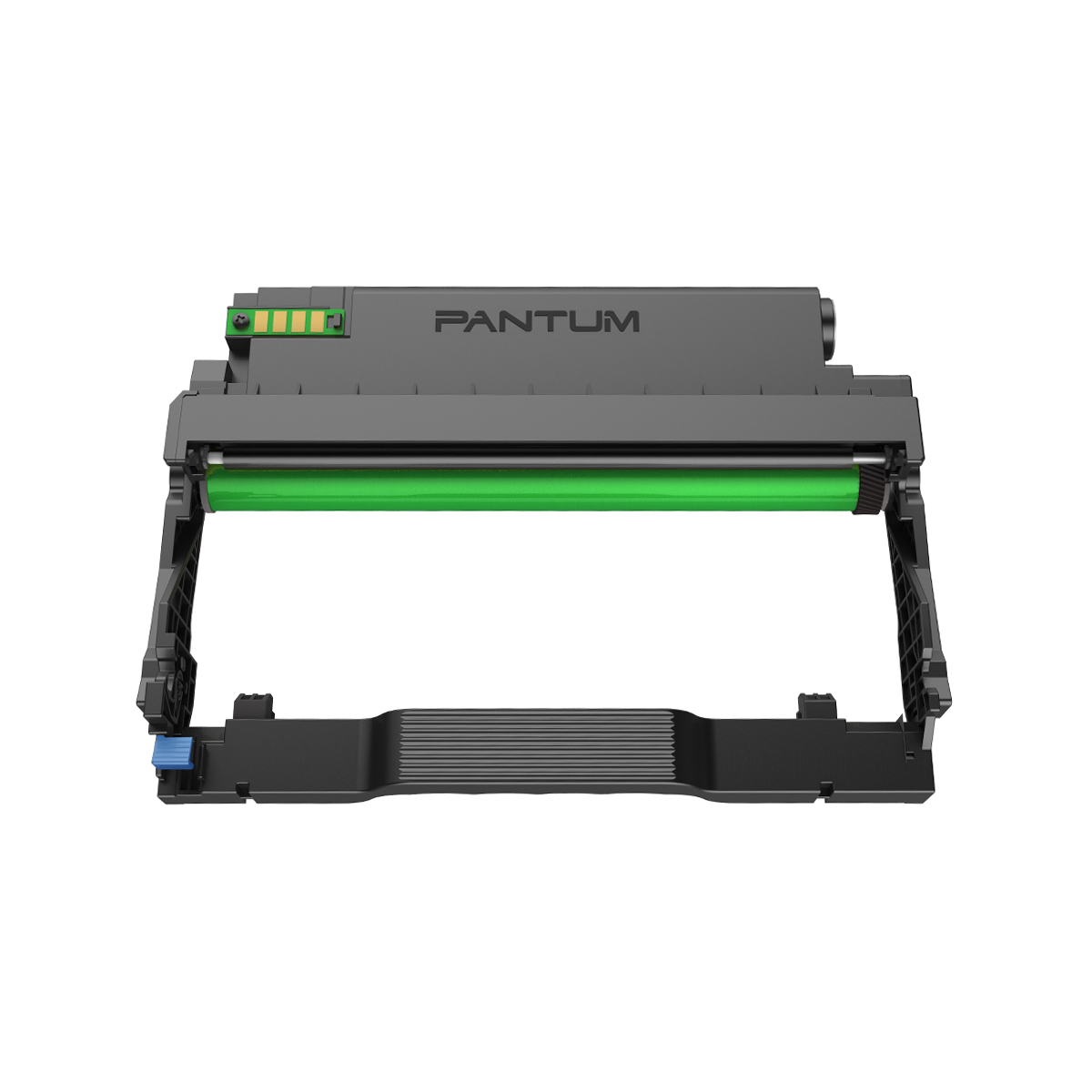

Standard Drum(1) DL-410 (12,000 pages)
Note (1)Toner and drum unit lifetime is based on ISO 19752.Individual users will experience different results affected by different printing habits and printing environment.
