BM4200ADN Mono laser multifunction printer

Printing speed: 33ppm
Connection method: USB+NET
Basic function: Print+Copy+Scan
Special function:
-Boosts efficiency with duplex high-speed printing
-Engineered for uninterrupted printing with lower paper jams
-Print with hotspot without network (Wi-Fi model only)
-Paper sensitive auto document feeder (50-sheet ADF)
Brochure（Click to download）
Other Product：

Select a Product

BP4200D BP4200DN BP4200DW BM4200D BM4200DN BM4200DW BM4200AD BM4240ADW BM4300ADW

FEATURES DETAILS CONSUMABLES

BM4200ADN

Durable High-Speed Printing with Reliable Performance

Quick and Easy Setup

Experience fast setup with one-step installation, getting you ready to print in no time.

High-Speed and Auto-Duplex Efficiency

Boost your productivity with the Pantum Efficient Pro series swift printing speeds of up to 33 ppm (A4) / 35 ppm (Letter). Enjoy the convenience of automatic duplex printing, save paper and costs, and meet the needs of demanding office environments.

Durable Printing on Various Media
Versatile Media Handling for Stable Printing

Designed to handle a wide range of paper types, including transparencies, labels, creased paper, curled paper, and even 60g/㎡ paper. This ensures that both heavy and thin media can pass through the printer smoothly, providing consistent and high-quality prints every time.

: Continuous printing of up to 200,000 pages, Jam rate below 0.02‰

Engineered with an upgraded fuser and paper handling unit, the printer can handle continuous printing of up to 200,000 pages with an exceptionally low paper jam rate of less than 0.02‰. This ensures a smooth and uninterrupted printing experience, even during high-volume jobs.

: 11,000 pages High-Capacity Toner for Cost-Effective Printing

The cost-effective, high-capacity toner cartridge can print up to 11,000 pages, offering a lower cost per page (CPP) compared to standard cartridges. This reduces the frequency of consumable replacements and minimizes labor costs, making it an economical choice for high-volume printing environments.

Product Spec

Product

BM4200ADN

General

Control panel	2-line LCD
Processor speed	800MHz
Memory	256M
Hard disk	NA
Recommended Monthly Page Volume	1000~10000pages
Maximun Monthly duty cycle	80,000pages
Connectivity	USB2.0（High Speed）； IEEE802.3 10/100 Base-Tx Ethernet、 IEEE 802.3az(EEE)
Power	110V model：100-127VAC，50/60Hz，9A 220V model：220-240VAC，50/60Hz，4.5A
Power Consumption	Print Average：≤550W Off：≤0.4w Standby： ≤50W Dormant：≤1W
Energy Star	Energy Star 3.0
Noise	Print：≤52dB（A） Copy：≤54dB（A） Scan：≤52dB（A） Standby：≤30dB（A）
Print Environment	Operating Temperature：10～32℃ Relative Humidity：20%~80%RH Altitude ≤2000m

Print speed(A4/LTR)	33ppm(A4)、35ppm(Letter)
Duplex print speed	15ipm
First print out time	≤8.5s
Printer language	PCL5e、PCL6、PS3、GDI、PDF1.7
Auto Duplex Printing	YES
USB disk Printing	NO
Mobile Printing	Airprint、Mopria、Pantum APP
Operating System	WindowsServer2012/Server2016/Server2019/Server2022/XP/Win7/Win8.1/Win10/win11（32/64 bit） Mac10.10～14.0 Ubuntu16.04、18.04、20.04、22.04 Chrome：99.0.4844.57 and 103.0.5060.114 Android 8.0-13.0 HarmonyOS 2.0 ios 13.0-17.0
Other Printing Functions	Brochure print poster print N-up print

Copy

Copy speed	33cpm(A4)、35cpm(Letter)
Duplex copy	Manual
First copy out time	FB：≤10s ADF：≤12s
Copy mode	Text、Image、Text+Image、Auto（default）
Copy Resolution	Max. 600 x 600dpi
Copy reduce / enlarge settings	25%-400%
Max.copy page	99 pages
Copy function	ID copy Receipt copy N-up copy Clone copy poster copy Automatic ID card correction

Scan

Scan technology	CIS
Scanner type	FB+ADF
Scan mode	color、gray、mono
Duplex Scan Speed	Manual
ADF scan Speed	24ppm(A4 ) 25ppm（Letter）
ADF capacity	50Pages（80g/㎡）
Max. Scan size	FB：216×297mm ADF：216 x 356 mm
Scan to	Scan to PC、Email、FTP、SMB、U flash drive
Scan format	push scan：PDF, JPG, TIFF, OFD pull scan：BMP，JPG，PNG，TIFF，PDF, OFD
Pantum scan application	YES
Other scan function	Support pull scan，OCR

Paper handling

Paper Input Capacity	250 pages（A4:80g/m²）
Paper Output Capacity	120 pages（80g/m²）
Paper Output Detection	NO
Media type	Plain, Thick, Transparency, Cardstock, Label ，Envelope，Thin
Media Size	A4, A5, JIS B5, IS0 B5 , A6, Letter, Legal,Executive , Folio, Oficio, Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K,32K, B6， Yougata4, Postcard, Younaga3, Nagagata3, Yougata2
Media Weight	Standard tray：60-105g/㎡； Multipurpose tray： 60-200g/㎡

Consumable

Consumable Type	Toner Cartridge & Drum Unit
Starter toner capacity (1)	TL-*4201：1500pages
Starter drum unit lifetime(2)	DL-*4201:25000pages
Standard toner capacity (1)	TL-4201H:3000pages TL-4201X:6000pages TL-*4201U:11000pages
Standard drum unit lifetime (2)	DL-*4201:25000pages

Packaging parameters

Machine Dimension（DWH）	415 x 360 x 352mm
Machine Package Dimension（DWH）	548×429×461mm
Printer Net Weight	10.8kg(without starter cartridge) 11.7kg(with starter cartridge )
Printer Gross Weight	14.2Kg
Cartridge Dimension（DWH）	Toner ： 28311652mm（3K） 28311665mm（6K） 28311696mm（11K） Drum unit：28219262mm
Cartridge Package Dimension（DWH）	Toner ： 322108144mm（3K/6K） 322177144mm（11K） Drum unit：359106224mm
Cartridge Net Weight	Toner ： 0.52KG（3K） 0.565KG（6K） 0.95KG（11K） Drum unit：0.45KG（25K）
Cartridge Gross Weight	Toner ： 0.715KG（3K） 0.75KG（6K） 1.19KG（11K） Drum unit：0.725KG（25K）

Show All

Consumables

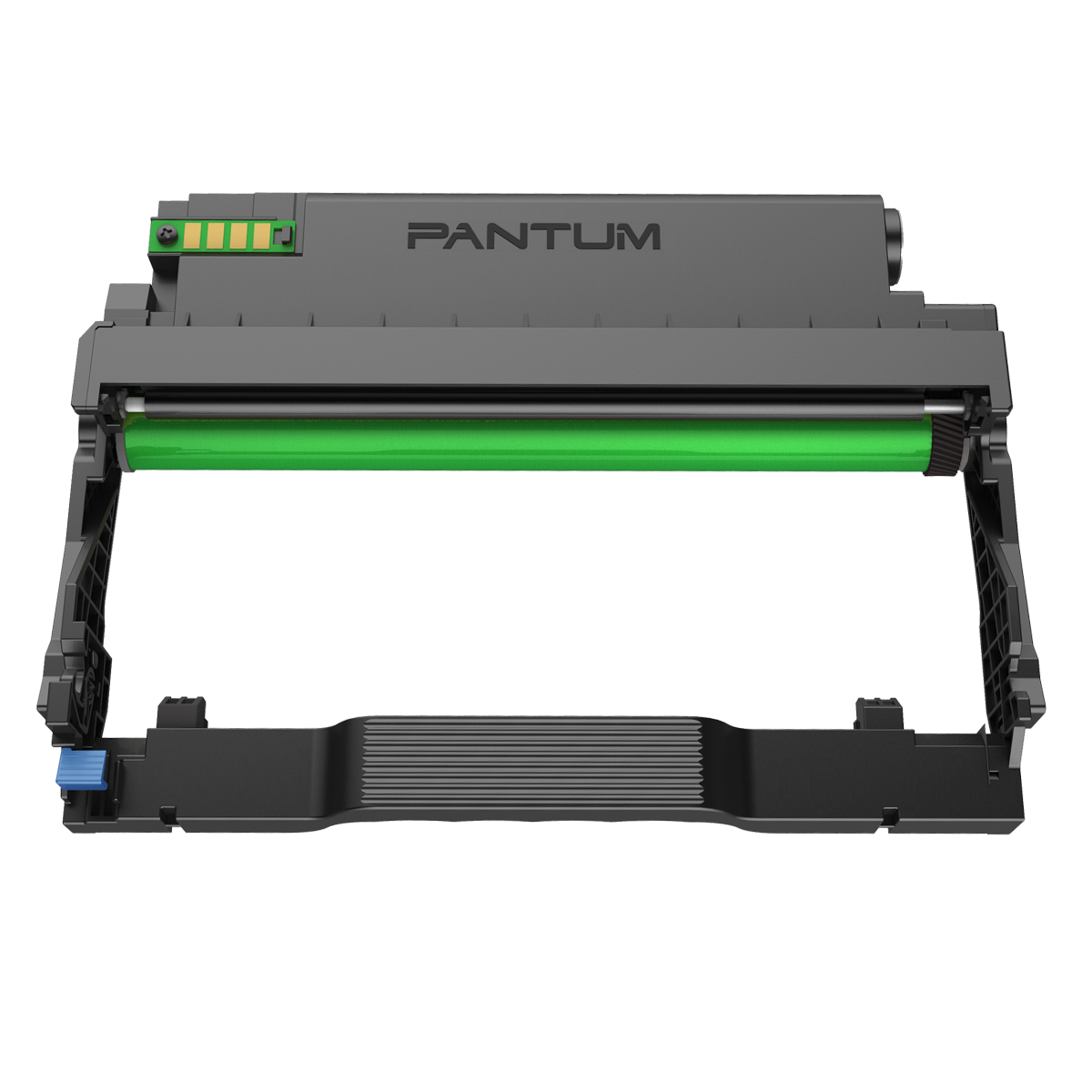

DL-*4201 Drum Unit

25000pages

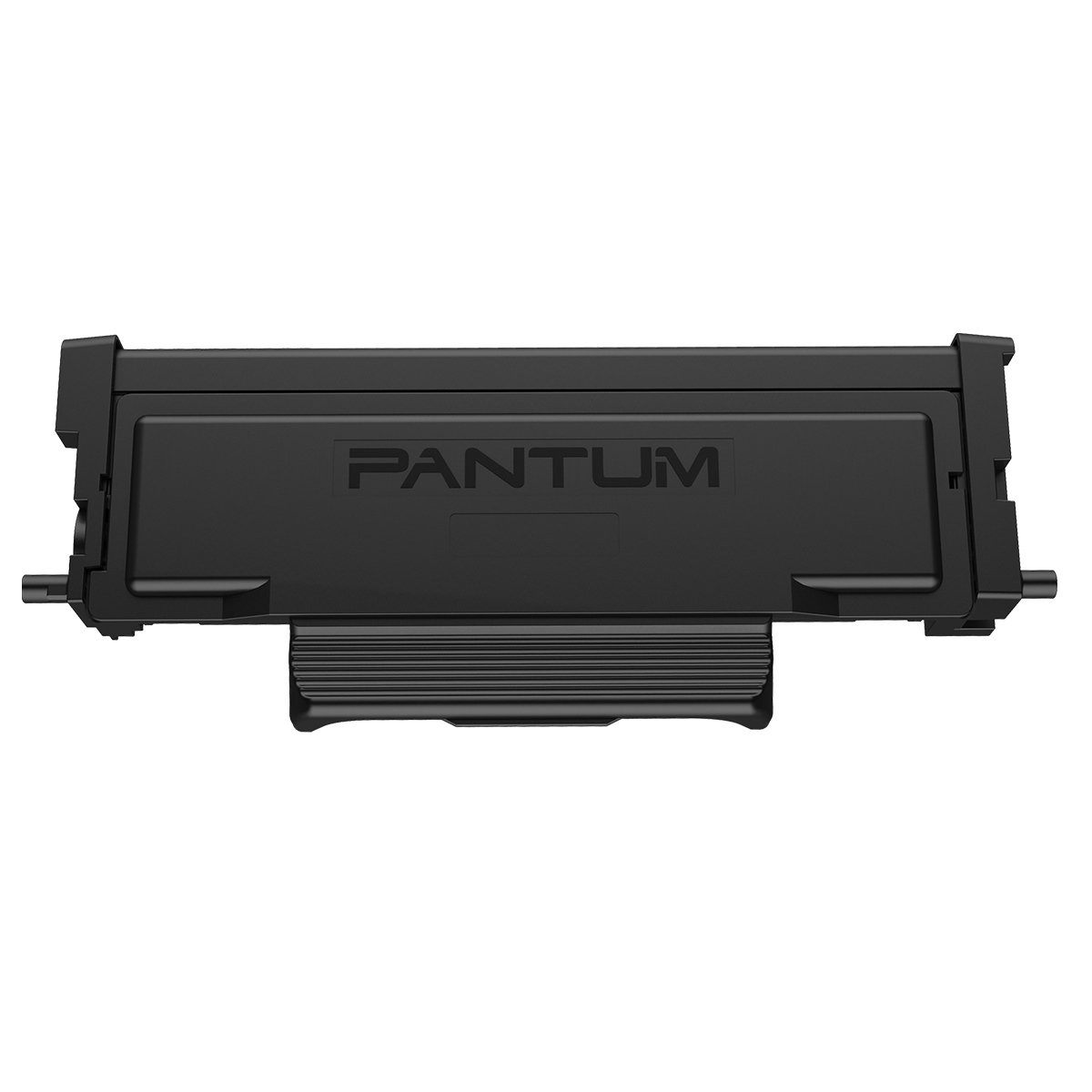

TL-*4201 Toner cartridge

1500pages

TL-*4201H Toner cartridge

3000pages

TL-*4201X Toner cartridge

6000pages

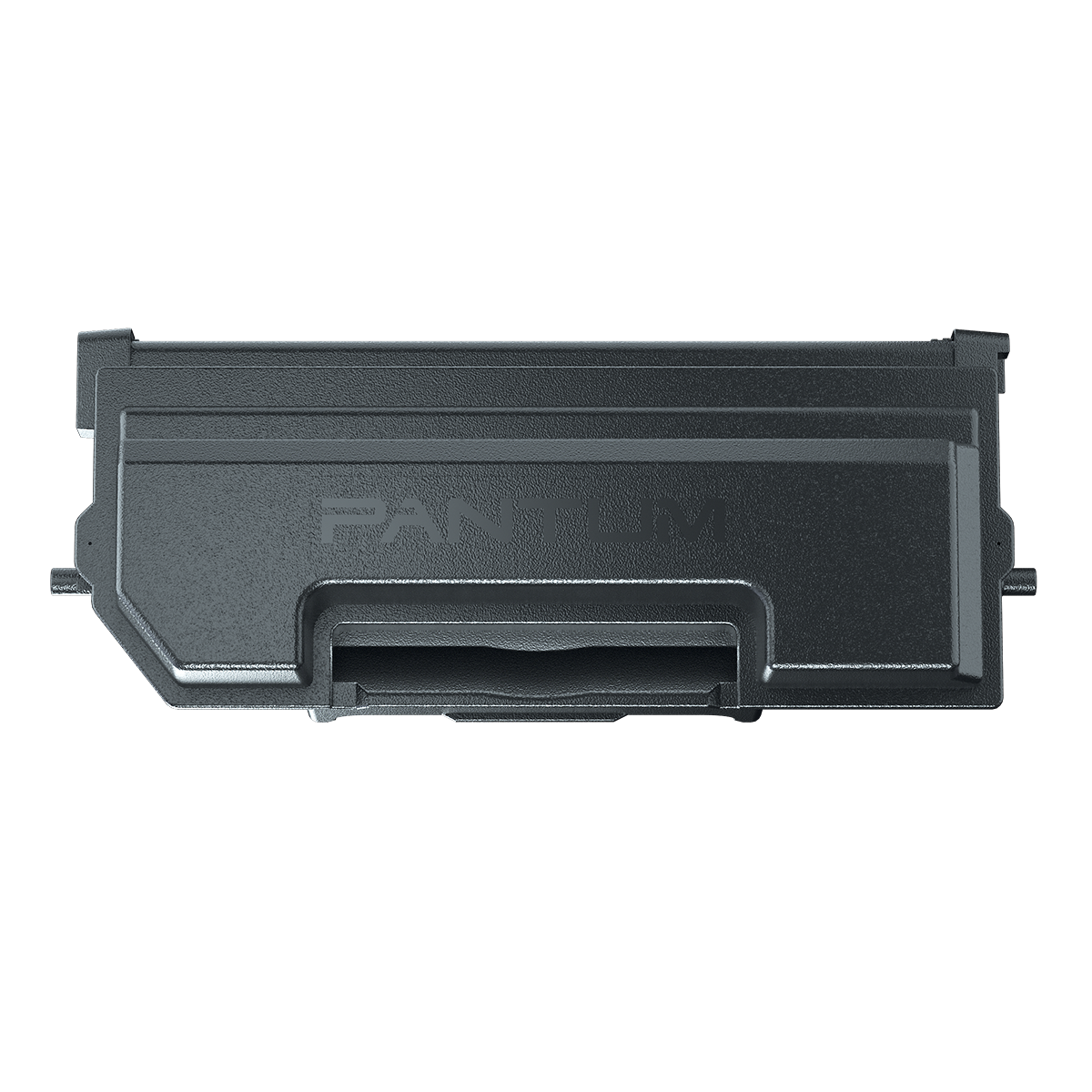

TL-*4201U Toner cartridge

11000pages
