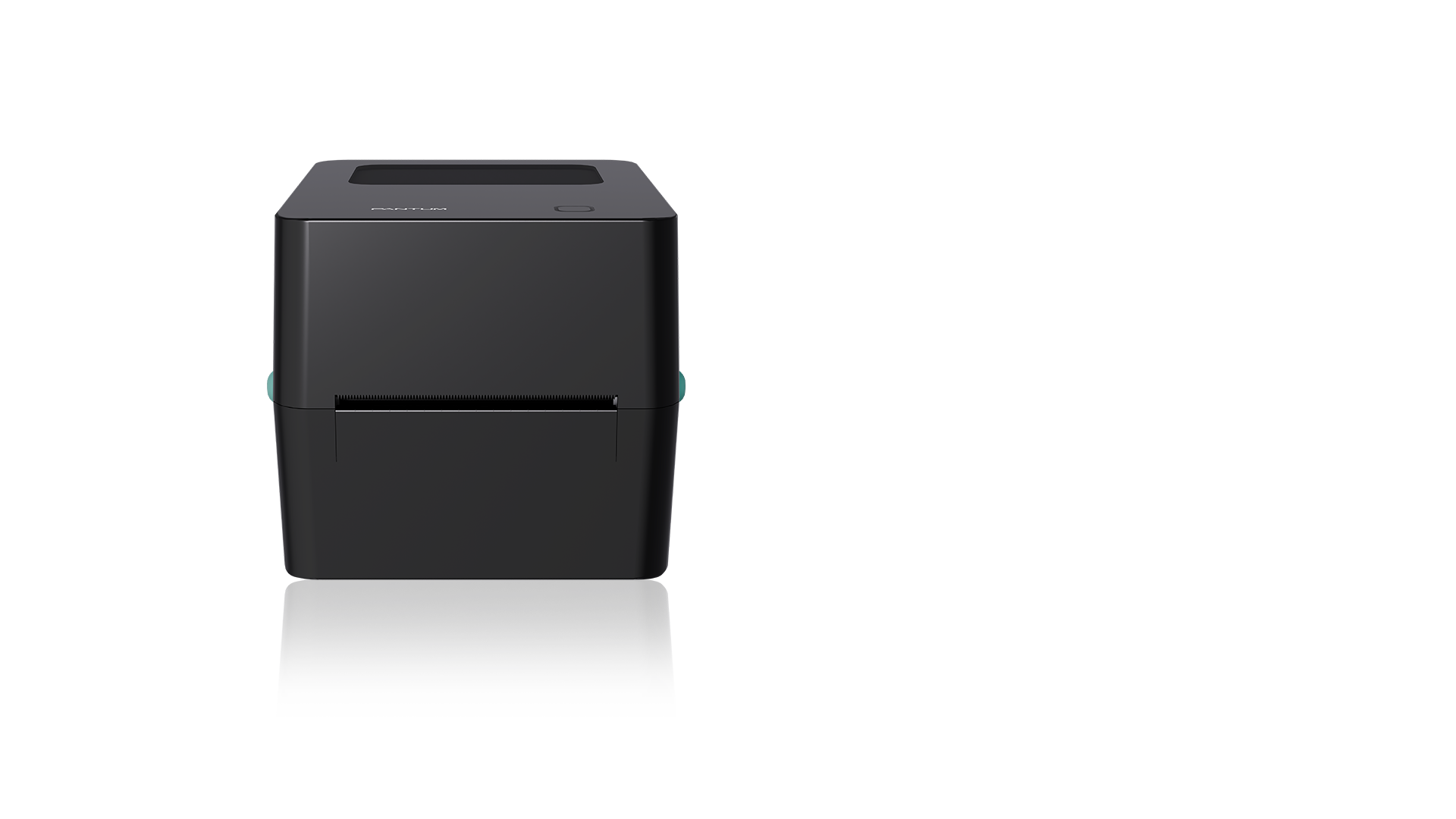

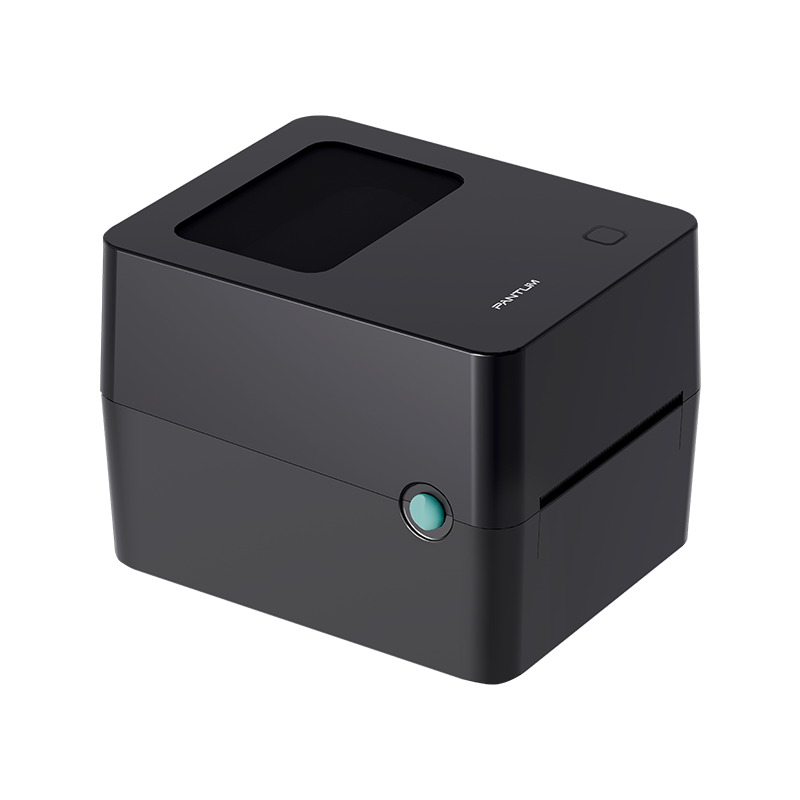

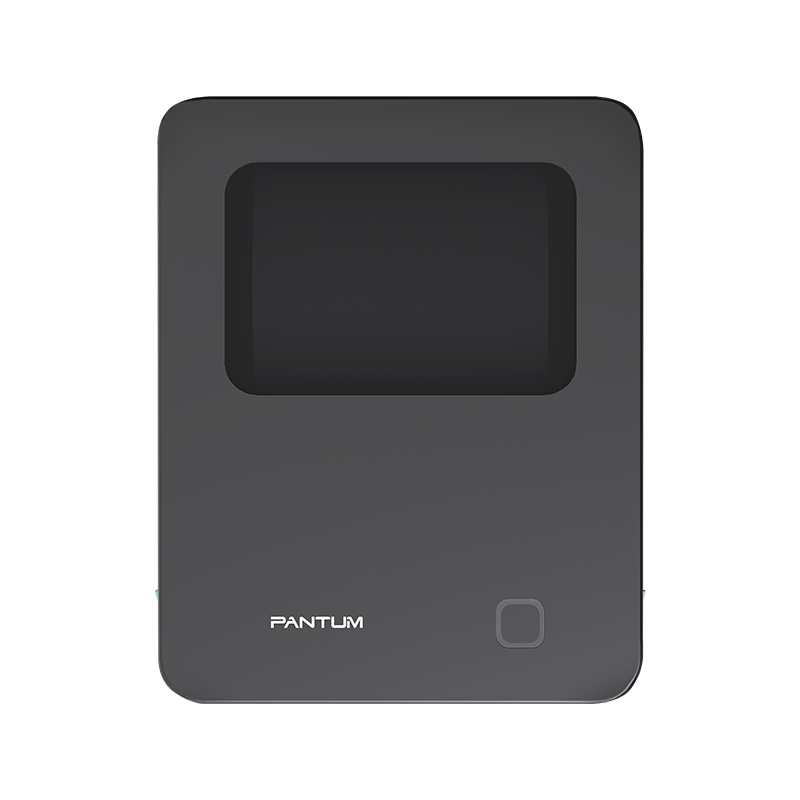

PD-401 Desktop Barcode Label Printer

  • Printing interface:USB
  • Printing speed:152mm/s(max)
  • Printing method:Direct thermal
  • Printing width/length:108mm(max)/1778mm(max)
  • Special function:
  • High-performance with MCU system
  • Smart breakpoint recovery
  • High-speed durable printing
  • Multi-precision sensors for accurate positioning
  •

    Brochure(Click to download)

PD-401
Precision Engineered for Uninterrupted Workflow
Premium MCU Main Control System
Powered by the premium MCU main control system integrated with a high-capacity external flash memory, this solution solves common issues like paper jams and incomplete prints, ensuring a consistently smooth printing experience.

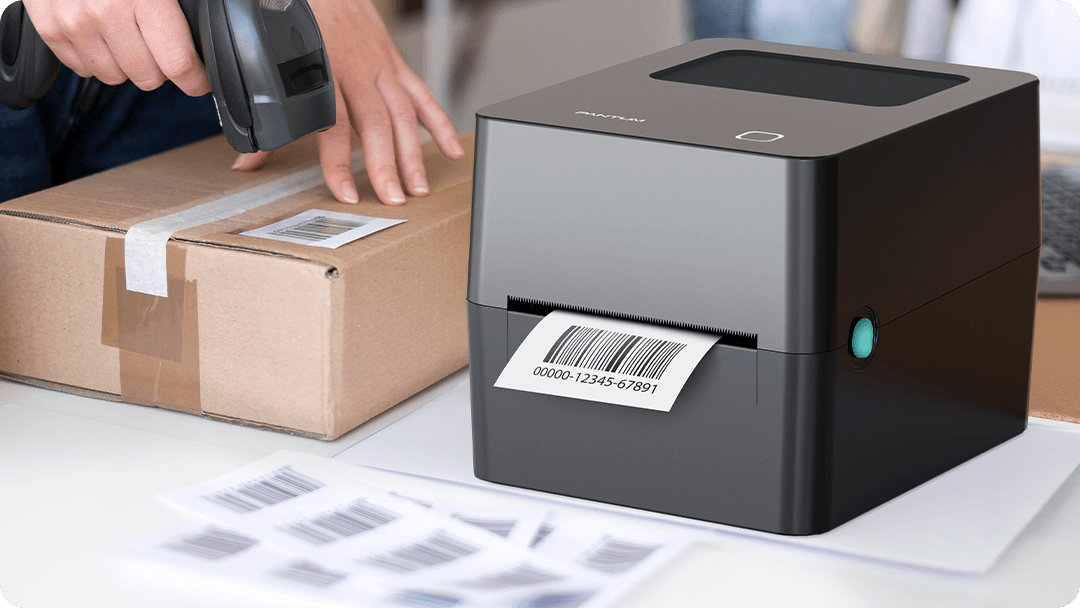

High-Speed Durable Printing
Print at 152mm/s without sacrificing quality, supported by a durable print head built for long-lasting, stable performance.
Smart Breakpoint Recovery with Memory Function
Equipped with an intelligent memory function, the printer automatically resumes printing damaged labels precisely from the breakpoint. This ensures seamless, continuous printing, leaving no label behind.

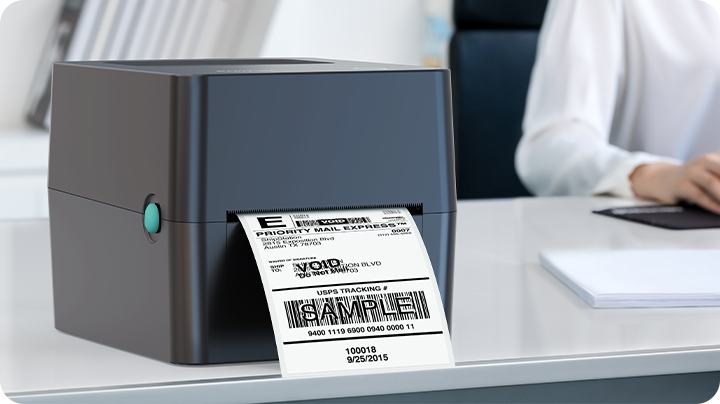

Error-Proof Your Labeling
A suite of multi-precision sensors, coupled with features like first-label auto-rewind and auto-resume upon paper reload, guarantees perfect label alignment every time. Enjoy an uninterrupted workflow with simplified operations.

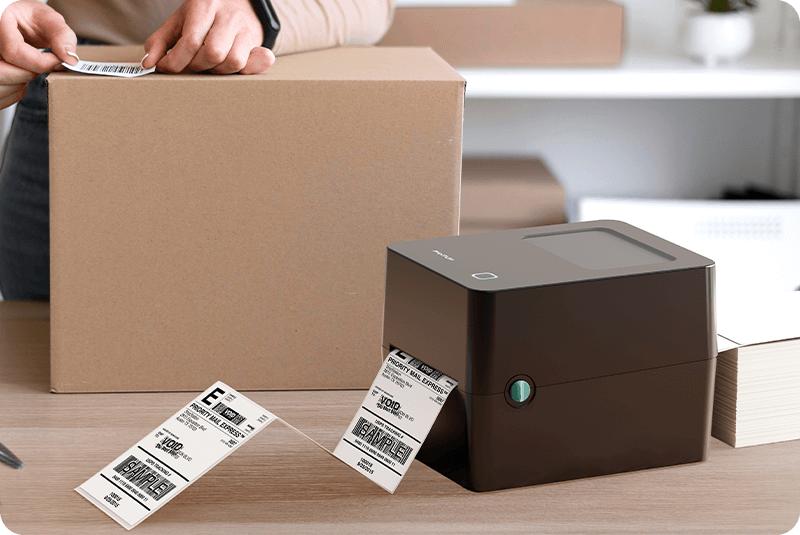

Versatile Consumable Compatibility Across Industries
Supports gap, continuous, black mark, folded labels and more, offering flexible choices for logistics, manufacturing, retail, warehousing, food delivery, clothing labeling and diverse industries.
Product Spec
Product
Product PD-401
General
Resolution 203DPI
Printing Method Direct Thermal
Interface USB
Emulation TSPL、ZPL、CPCL、DPL、EPL
Sensor Gap sensor/open cover sensor/Black label sensor
Print
Print Speed 152mm/s(max)
Printing Width 108mm(max)
Printing Length 1778mm(max)
Bar code Format Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11
Two-dimensional code Format QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC
Character Enlargement/rotation 1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing
Character GB18030、BIG5、ASCII
Extended Character PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257
Character Size 9x17dot, 12x24dot, 24x24dot
Media
Paper Type Gap Label, Continuous Label, Black Mark Label, Folded Label
Roll Width (including backing Paper) 30~114mm
Roll Thickness (including backing Paper) 0.12~0.26mm
Paper Axis Size 25.4mm
Roll outside diameter 120mm(OD)
FEED Front exit
Memory
SDRAM SDRAM 8MB
FLASH FLASH 8MB(expandable)
Power&Environment
Power Input Power Supply: AC100 〜240V 50/60Hz
Output Power: DC 24V~2.5A
Working Environment Operating Temperature: 5~40°C
Operating Humidity: 25~85%
Storage Environment Storage Temperature: -10~60℃
Storage Humidity: 10~90%
Physical
Print Head Life 150km(Print rate 18.5%)
Dimension 210 * 178 * 153mm
Weight 1.2KG
Accessories
Accessories (standard) 1. Power adapter
2. Power cord
3. USB cable
4. Quick Installation Guide
5. Labels
6. Paper reel, Paper roll baffle *2
Accessories (optional) External roll holder
