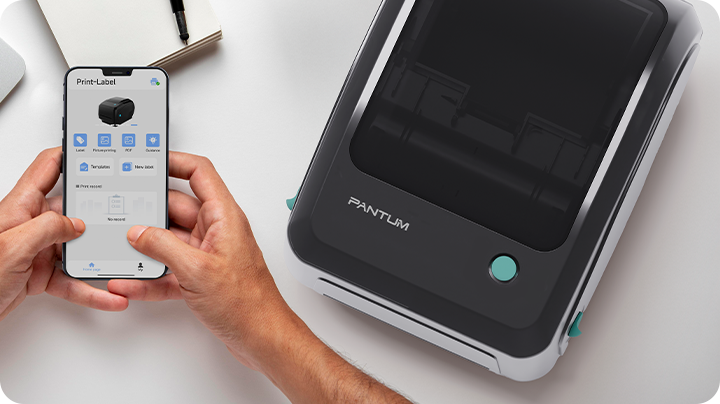

PD-402TBW Desktop Thermal Transfer Barcode Label Printer

Printing interface：USB+Bluetooth+Wi-Fi
Printing speed：152mm/s(max)
Printing method：Direct thermal/thermal transfer
Printing width/length：108mm(max)/1778mm(max)
Special function：
Two modes：Direct thermal & thermal transfer
Silent swift printing with large paper capacity
Patented ribbon flattening technology
Smart temperature adjustment
Brochure（Click to download）

FEATURES DETAILS CONSUMABLES

PD-402TBW

Two Modes, One Printer, Infinite Possibilities

Flexible Dual-Mode Printing: Direct Thermal & Thermal Transfer

Supports direct thermal & thermal transfer modes for versatile material adaptability. Our advanced thermal transfer technology ensures ink bonds securely, delivering fade-resistant, durable prints that stand the test of time.

Premium MCU Main Control System

Powered by the next-generation MCU main control system with high-capacity external flash memory, it minimizes paper jams and incomplete prints, ensuring a consistently smooth printing process.

: Dual Connectivity & Multi-Device Hub

Seamlessly switch between Bluetooth and Wi-Fi for flexible printing. Connect up to 32 PCs simultaneously via Wi-Fi, or pair an Android and iOS device simultaneously via Bluetooth. Effortlessly share tasks across your devices for optimized productivity.

: Silent Swift Printing with Large Paper Capacity

Experience swift, high-speed printing powered by an advanced low-noise engine—perfect for quiet environments. Plus, the large paper container minimizes reloads, ensuring uninterrupted workflow and maximum productivity.

Patented Ribbon Flattening & Smart Temperature Control

Our exclusive ribbon flattening technology minimizes ribbon wrinkles for sharp, consistent prints, while intelligent temperature control ensures stable, reliable performance—even during extended use.

Precision Sensor Alignment

Leveraging advanced sensor technology, it precisely positions the ribbon and labels. This reduces misalignment issues, significantly enhancing print quality and operational efficiency.

: All-Around Printing Versatility

Supports a wide range of consumables—from gap, continuous, black mark, folded, coated, and perforated labels to barcode ribbons—and adapts seamlessly to industries like manufacturing, asset management, automotive electronics, warehousing, smart logistics, healthcare, and more. Reliable, flexible, and ready for any application.

Product Spec

Product

PD-402TBW

General

Resolution	203DPI
Printing Method	Direct Thermal / Thermal Transfer
Interface	USB+Bluetooth+WiFi
Emulation	TSPL、ZPL、CPCL、DPL、EPL
Sensor	Gap sensor/open cover sensor/Black label sensor/Carbon detection sensor
Tearing Mode	Paper knife (standard) External cutter (full cut/half cut), stripper (optional)

Print Speed	152mm/s（max）
Printing Width	108mm（max）
Printing Length	1778mm（max）
Bar code Format	Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11
Two-dimensional code Format	QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC
Character Enlargement/rotation	1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing
Character	GB18030、BIG5、ASCII
Extended Character	PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257
Character Size	9x17dot, 12x24dot, 24x24dot

Media&Ribbon

Paper Type	Gap Label, Continuous Label, Black Mark Label, Folded Label,Coated Label
Roll Width (including backing Paper)	20~118mm
Roll Thickness (including backing Paper)	0.06~0.254mm
Paper reel core	25.4mm
Roll outside diameter	127mm（OD）
Ribbon Width	30~110mm
Ribbon Length	300m
Paper Axis Size	25.4mm
Roll outside diameter	67mm（OD）
Ribbon Winding Form	Roll-out
FEED	Front exit

Memory

SDRAM	SDRAM 8MB
FLASH	FLASH 8MB（expandable）

Power&Environment

Power	Input Power Supply: AC100 〜240V 50/60Hz Output Power: DC 24V~2.5A
Working Environment	Operating Temperature: 0~45°C Operating Humidity: 20~90%
Storage Environment	Storage Temperature: -10~60℃ Storage Humidity: 10~90%

Physical

Print Head Life	150km(Print rate 18.5%)
Dimension	274 * 213 * 191 mm
Weight	2.54KG

Accessories

Accessories (standard)	1. Power adapter 2. Power cord 3. USB cable 4. Quick Installation Guide 5. Labels 6. Ribbon strip axis *2 7. Ribbon
Accessories (optional)	External roll holder
